Multi-arc Ion Glass Metallizing Vacuum/metal Vacuum Coating

Collect

Introduction

Longkou Bite Vacuum Technology Co., Ltd. It was founded in 1930. lying on the Beijing Normal University, Beijing Institute of T the g machinery Shenyang vacuum Technology Research Institute of technical cooperation. technology and transformation, improve the original technology ability, have independent research development are development of advanced technology reliable performance and market adaptabaty"BITE" brand are magneton machine, magnetron man target multi-arc coating machine, intermediate frequency vacuum coating machine anomat tle vacuum coating machine, high current metal vapor vacuum arc ion impartaton machine. vacuum heat and other series products. A few years, my company has assumed the 5 natonal and provincial science and won two award of the Shandong provincial science and technology progress. effectve 10 patents High technology suon vacuum coating equipment is advanced and the adaptability to the market, a variety of products have been e States, Spain. Scuth Korea, Inda, Canada and other countries and regions.

Company Link: http://longkoubt.en.alibaba.com/ (show our company and products to you............

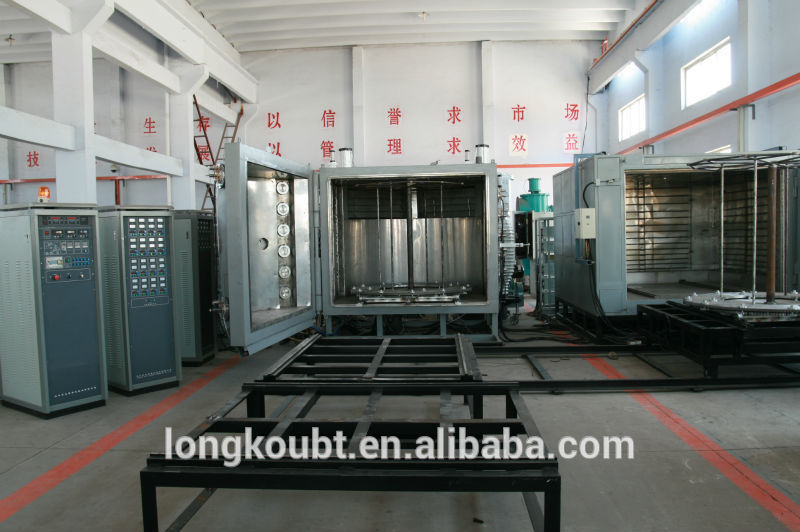

Glass Metallizing Vacuum Coating Machine

Improved functionality and flexibility are the main advantages of the relatively new coating process "PVD coating for plastic parts".

PVD coating is a multi-stage process. The parts are first pretreated with a primer coat. Thereafter in the PVD process itself the parts are "sputter coated" in a vacuum chamber while electrically charged.

Finally a protective clearcoat layer is sprayed over the metallic finish. Unlike chrome plating there are no cyanide dip tanks or other chemical baths that have negative environmental impacts.

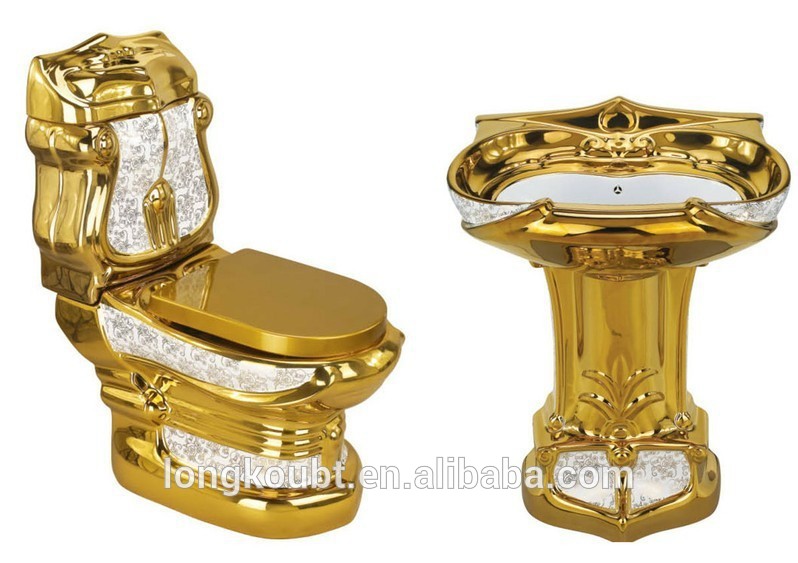

This process has already found applications in automotive logos, cosmetic packaging and in some areas of sanitary engineering.

PVD's flexibility is enhanced through the ability to control the deposition layer thickness, deposition material, availability of various primer and topcoats, and even the part material itself. The combination allows the customer to better control both the appearance and physical properties of the end product.

	parameters	Model No.	Quantity
The structure of the vacuum chamber	Vertical front door , Double or cooling tank cooling
dimension of vacuum chamber	700×1000		1
pumping speed	1×105Pa~3×10-3Pa≤15min
limit vacuum	≤8×10-4Pa
system form a complete set	Maintaining the pump	2X-15	1
	Mechanical pump	2X-70	1
	Diffusion pump	KT-400	1
workpiece system	Rotation of the planet forms(8 roating shaft, since the amount)		8
heating methods	Edge installation of stainless steel heating tube		4
ion bombardment	20KW inverter bias	PLS-20KW	1
Arc target	40-200A adjustable	TIG-250	3
magnetron target amount	one plane target or Cylindrical target		2
Magnetron power	20KW IF power	MF-20KW	1
working methods	PLC semi-auto control or PC+PLC auto control
working gas	Ar N2 O2
total power	30KW
compress air	0.4~0.8MPa
water-cooling system	hydraulic pressure/water temperature:≤25°C/≥0.25MPa(user provide for himself)
